Reduced Shank Metric

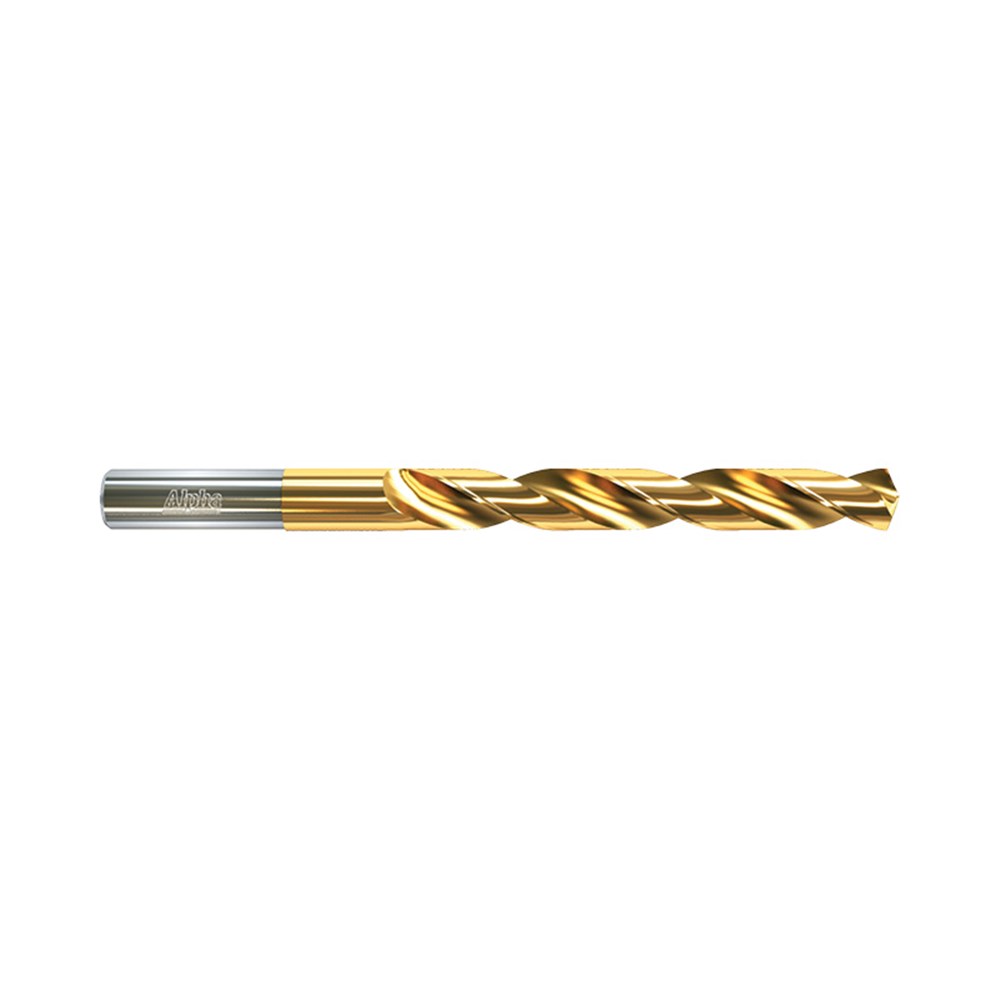

10.5mm Reduced Shank Drill Bit Single Pack - Gold Series

Product Code: 9LM105R

Key Features
118 Deg split point - Better for drilling into Pilot Holes
3 Flats on Shank - Prevents slippage in chuck
Black/ Bright finish acids chip flow and heat dissipation
Full length ground from a single piece of HSS - eliminates breakage
Login to view pricing
Technical Specifications
Brand ALPHA
Subcategory Reduced Shank Metric
Series Black
Series Gold
Type of Measure Metric

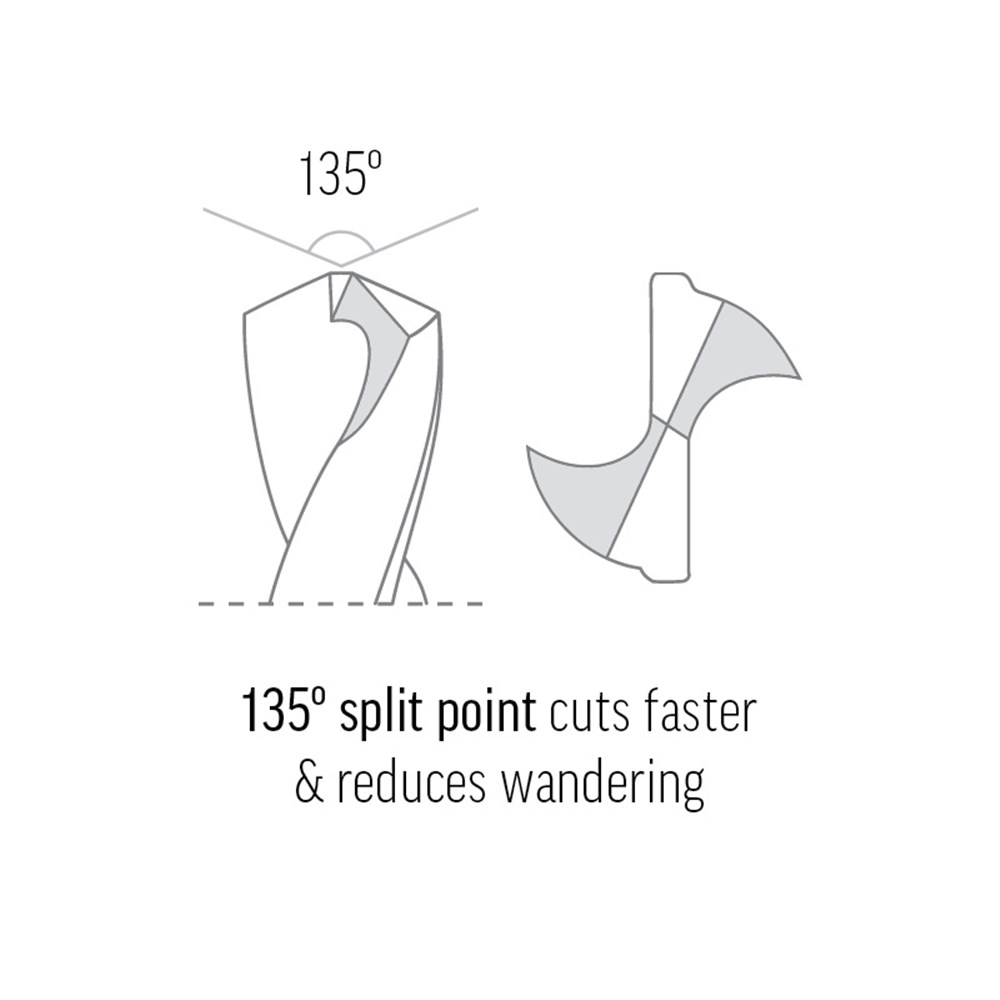

Angle (deg) 135
Diameter (mm) 10.5
Flute Length (mm) 87
Material M2 HSS
OAL (mm) 133
Shank Size (mm) 10
Barcode 9342386011012
Category Reduced Shank Metric
Longest side (mm) 170.00
Median side (mm) 25.00
Shortest side (mm) 20.00
Weight (gr) 85.00
Box Quantity 5.00
Carton Quantity 25.00
Order Quantity 1
Unit Of Measure
Box: 25
  • 118° split point - Better for drilling into Pilot Holes
  • 3 Flats on Shank - Prevents slippage in chuck
  • Black/ Bright finish acids chip flow & heat dissipation
  • Full length ground from a single piece of HSS - eliminates breakage
