UNC Carbon

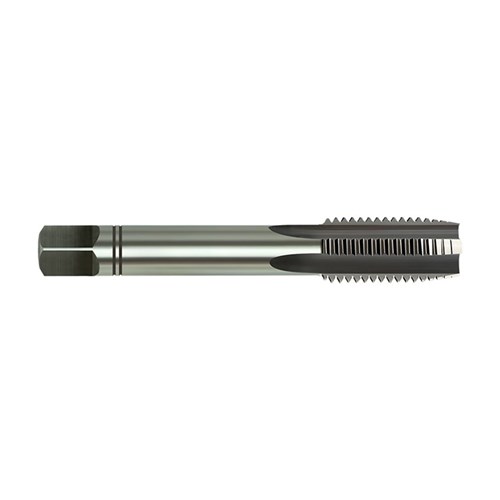

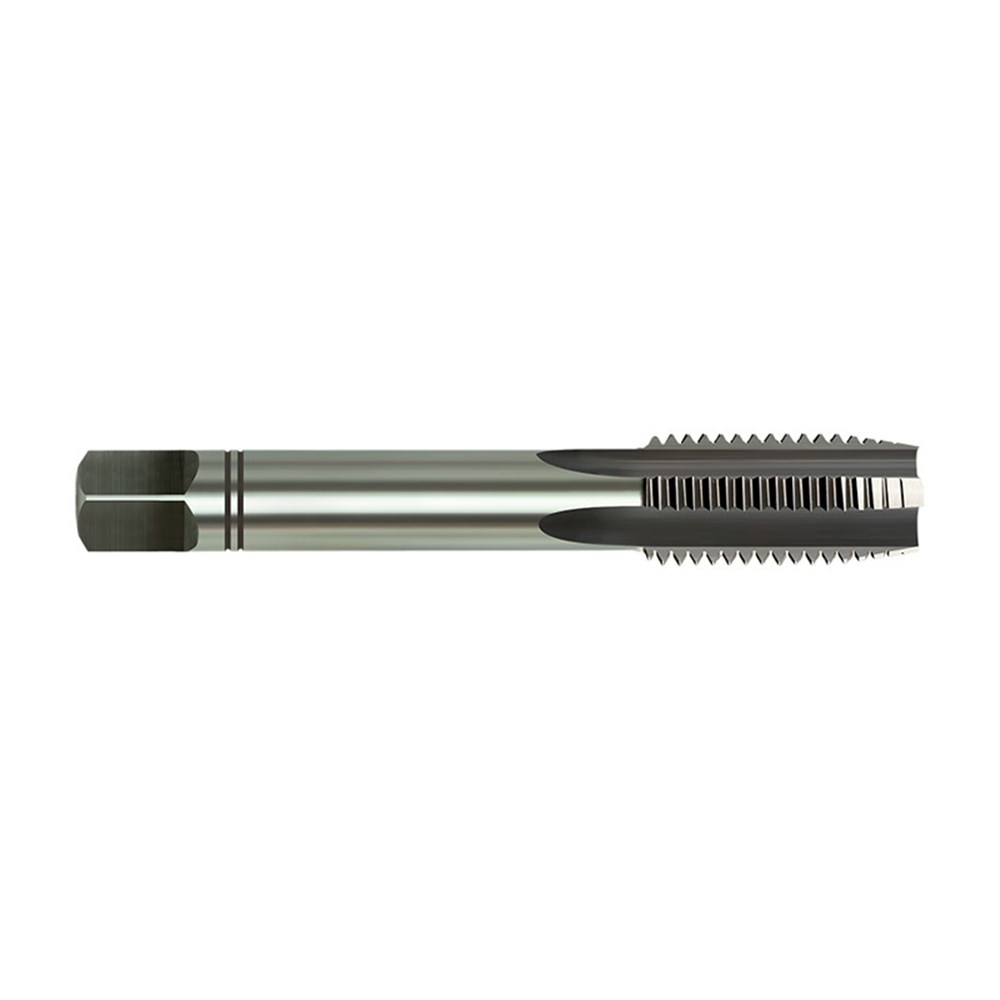

Carbon Tap UNC Intermediate-5Gx40

Product Code: UNCCI5G

Key Features
Precision manufactured in Europe to ISO529 standards
Suitable for hand and machine operation, and are suitable for production
2N Tolerance for optimum thread fit
Login to view pricing
Technical Specifications
Brand ALPHA
Subcategory UNC Carbon
Type of Measure UNC
Diameter (gauge) 5
Drill Size (mm) 2.6
Head Type Intermediate
Material Carbon
OAL (mm) 48
TPI 40
Barcode 9342386031478
Category UNC Carbon
Longest side (mm) 80.00
Median side (mm) 10.00
Shortest side (mm) 10.00
Weight (gr) 5.00
Box Quantity 1.00
Carton Quantity 1.00
Order Quantity 1
Unit Of Measure
Box: 1
Carton: 1
  • Alpha Carbon Hand Taps are precision manufactured in Europe to ISO529 standards.
  • Carbon Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.
  • 2N Tolerance for optimum thread fit that balances fastener performance, manufacturing, economy and convenience.
  • Suitable for use in Steel, Aluminium, Copper, Brass etc.
  • Always use lubricant. Click here for our range.

INTERMEDIATE taps have a lead of four threads and are used in most general purpose applications. Alpha Intermediate taps can be identified by the two rings on the shaft near the driving square.

  • Diameter: 5mm
  • Pitch: 40mm
  • Overall length: 40mm
  • Shaft Diameter: 3.5mm
  • Drive Square: 2.7mm
  • Tapping Drill Size: 2.60mm
