Three Flute

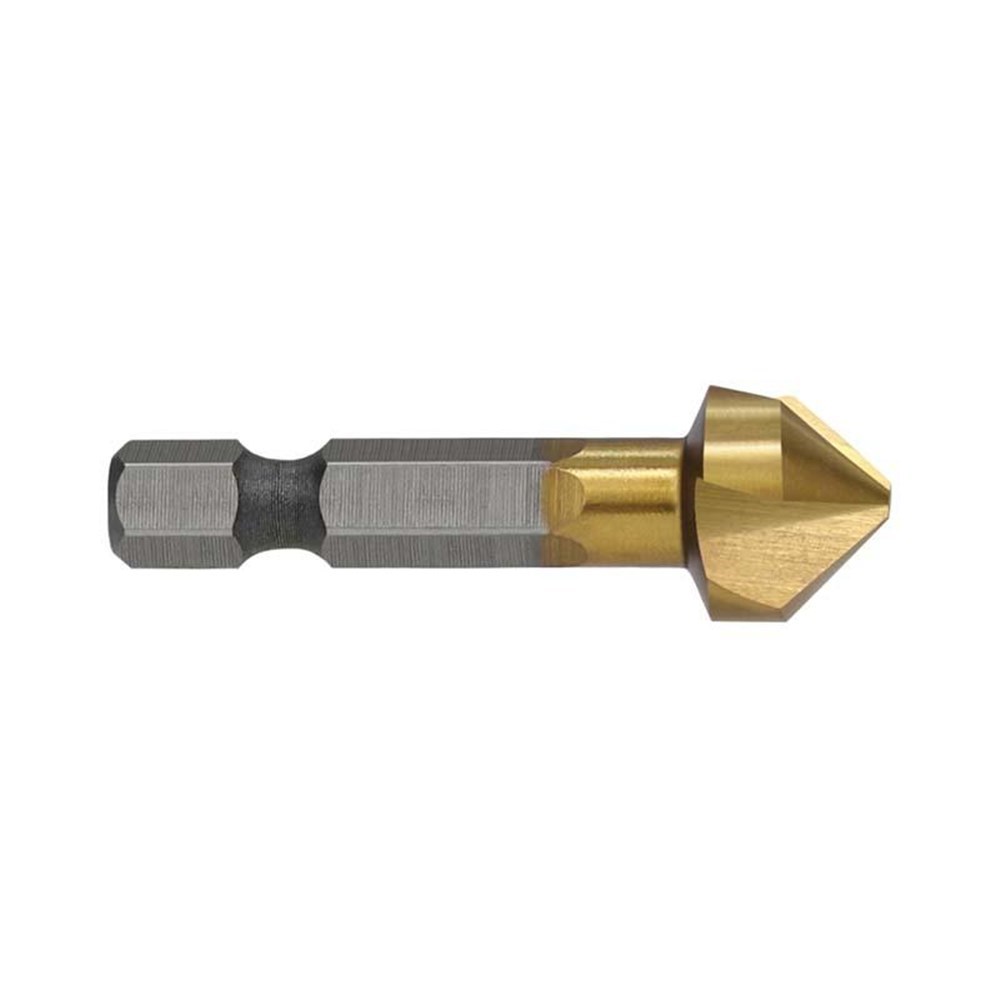

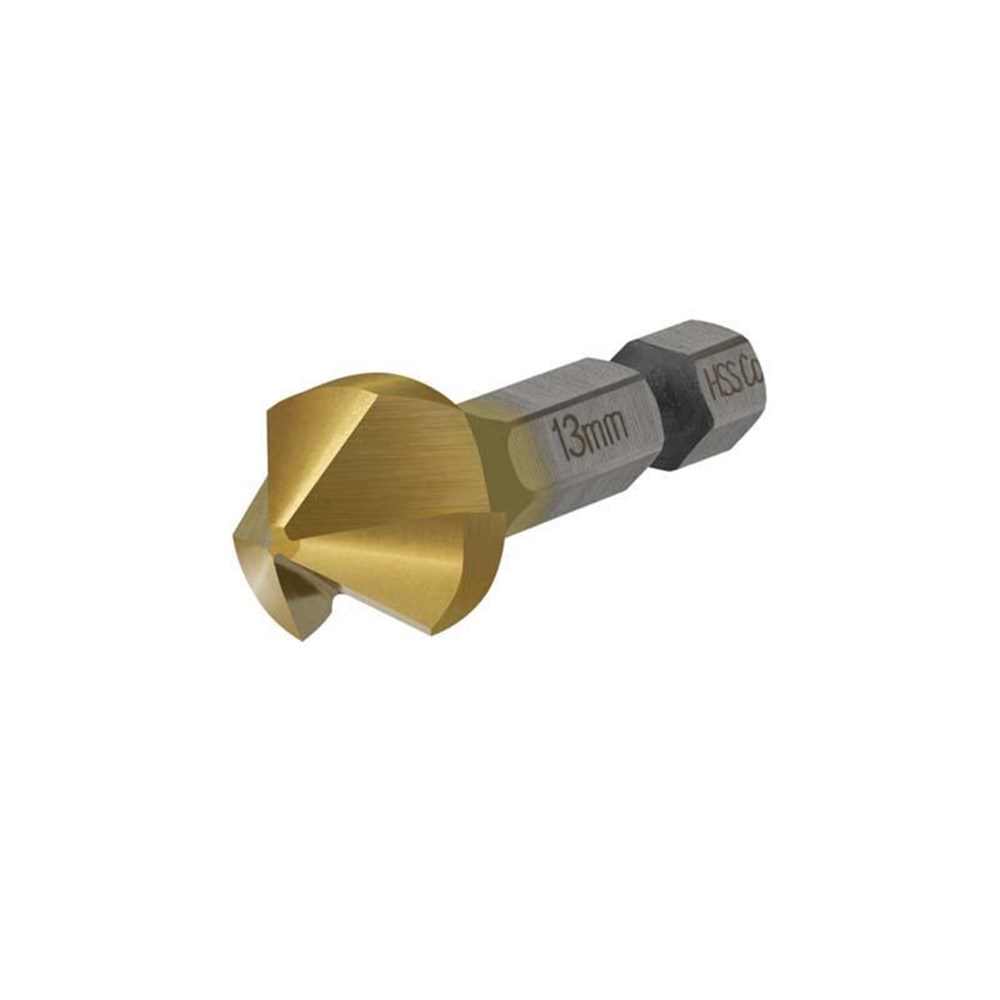

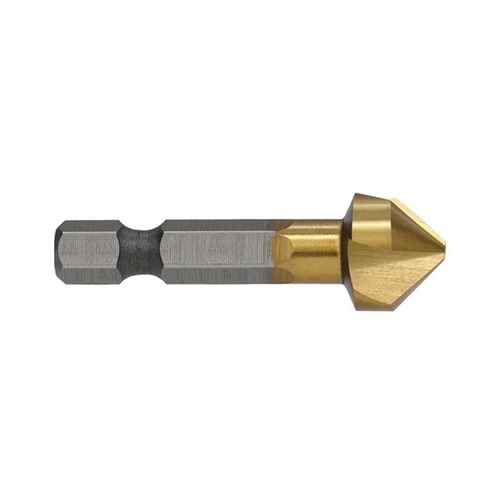

Countersink 3 Flute 13mm TiN 1/4in Hex Shank Carded

Product Code: CS3-13QR

Key Features
Designed for long-lasting results in the toughest materials, Alpha Gold Series countersinks last three times longer than other countersinks on the market.
Fully ground M2 HSS-CoB increases strength and countersink life
Titanium nitride coating reduces heat and increases lubricity for extended life
3 flute design provides clean and fast countersinking and deburring with a cordless drill
HSS cobalt with TiN coating
Login to view pricing
Technical Specifications
Brand ALPHA
Subcategory Three Flute
Series Gold
Angle (deg) 90
Diameter (mm) 13
Head Type 3 Flute
Material HSS
OAL (mm) 42
Shank Size (in) 1/4
Barcode 9342386091700
Category Three Flute
Longest side (mm) 160.00
Median side (mm) 60.00
Shortest side (mm) 20.00
Weight (gr) 25.00
Box Quantity 12.00
Order Quantity 1
Unit Of Measure
Box: 12

Documents

Designed for long-lasting results in the toughest materials, Alpha Gold Series countersinks last three times longer than other countersinks on the market.

  • Fully ground M2 HSS-CoB increases strength and countersink life
  • Titanium nitride coating reduces heat and increases lubricity for extended life
  • 3 flute design provides clean and fast countersinking and deburring with a cordless drill
  • HSS cobalt with TiN coating
  • 1/4″ quick change shank
  • Suits: Non-hammer action portable power and pedestal drills

Technical data:

  • Head diameter: 13mm, 33/64
  • Overall length: 42mm
  • Shank diameter: 1/4″
  • Range min-max: 2 - 13
