UNF HSS

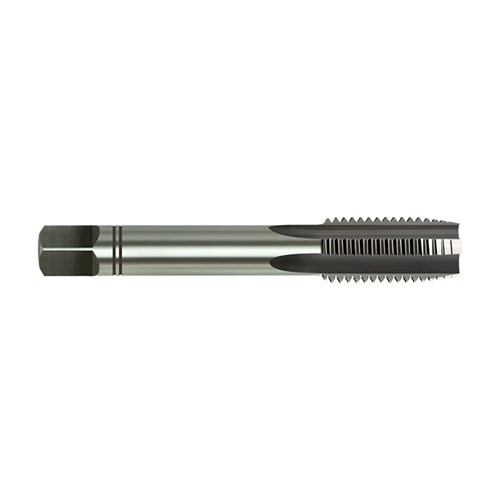

HSS Tap UNF Intermediate-10Gx32

Product Code: UNFHI10G

Key Features
Precision manufactured in Europe to ISO529 standards
Suitable for hand and machine operation, and are suitable for production
2N Tolerance for optimum thread fit
Login to view pricing
Technical Specifications
Brand ALPHA
Subcategory UNF HSS
Type of Measure UNF
Diameter (gauge) 10
Drill Size (mm) 4.1
Head Type Intermediate
Material HSS
OAL (mm) 58
TPI 32
Barcode 9342386039511
Category UNF HSS
Longest side (mm) 80.00
Median side (mm) 10.00
Shortest side (mm) 10.00
Weight (gr) 10.00
Carton Quantity 1.00
Order Quantity 1
  • Alpha HSS Hand Taps are precision manufactured in Europe to ISO529 standards.
  • HSS Hand Taps are general purpose taps suitable for hand and machine operation, and are suitable for production use.
  • 2N Tolerance for optimum thread fit that balances fastener performance, manufacturing, economy and convenience.
  • Suitable for use in Steel, Aluminium, Copper, Brass etc.
  • Always use lubricant. Click here for our range.

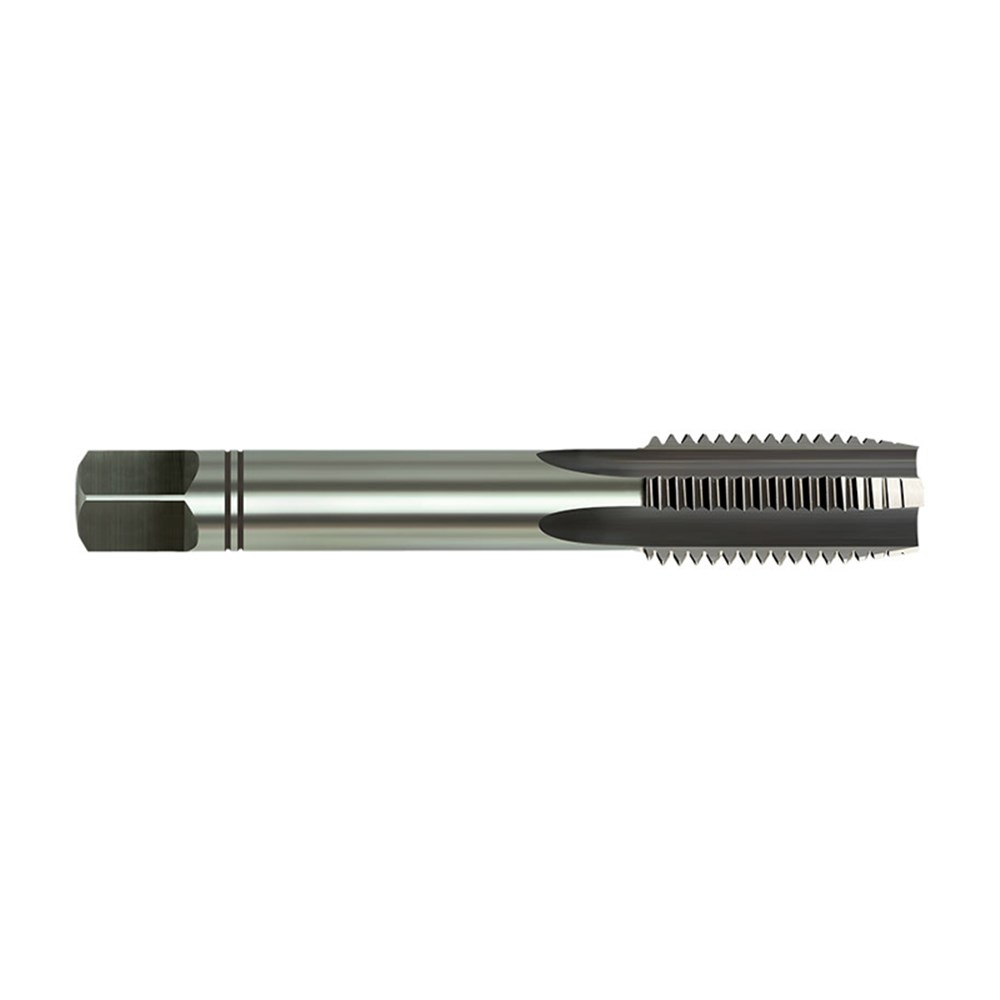

INTERMEDIATE taps have a lead of four threads and are used in most general purpose applications. Alpha Intermediate taps can be identified by the two rings on the shaft near the driving square.

  • Diameter: 10mm
  • Pitch: 32mm
  • Overall length: 50mm
  • Shaft Diameter: 6mm
  • Drive Square: 4.9mm
  • Tapping Drill Size: 4.10mm
